    Premium Quality Happymodel Sailfly-X 105mm Crazybee F4 PRO V2.1 AIO Flight Controller

    Original price was: NZD $510.99.Current price is: NZD $193.99.

    Add to wishlist
    Description

    Description

    ShopCalifornia

    ShopCalifornia’s Super Sale is Back!

    Specificaiton:
    Brand Name: Happymodel
    Model: Sailfly-X

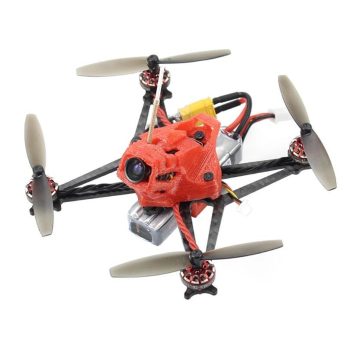

    Item Name: 105mm Crazybee F4 PRO 2-3S Micro FPV Racing Drone
    Version: PNP ( Without Receiver) / Compatible Frsky RX /
    Compatible Flysky RX / Compatible DSM2/DSMX RX ( Optional)
    – Frsky version support both NON-EU and EU-LBT Frsky transmitter
    (EU-LBT need to update firmware to Betaflight 4.0( release date :2019-4-11)
    – Flysky version support both AFHDS and AFHDS-2A protocol transmitter
    – DSM2/DSMX version support DSM2 and DSMX compatible Spektrum transmitter
    – No RX version support external serial-bus receiver like xm+, crossfire, S-FHSS etc.

    Wheelbase: 105mm

    Size: 95mm*95mm*50mm(without propellers)

    Weight: 35g(without battery)

    Weight:60g(with Original 3s 300mah Lipo battery )


    Crazybee F4 PRO Flight Controller
    (Frsky version) CRAZYBEE F4FR PRO V2.1 Firmware target: CrazybeeF4FR
    (Flysky version) CRAZYBEE F4FS PRO V2.1 Firmware target: CrazybeeF4FS
    (DSM2/DSMX version) CRAZYBEE F4DX PRO V2.1 Firmware target: CrazybeeF4DX
    (No RX version) CRAZYBEE F4 PRO V2.1 Firmware target: CrazybeeF4DX
    MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
    Sensor: MPU-6000(SPI connection)
    Board size: 28.5 * 28.5MM
    Power supply: 2-3S battery input (DC 7.4-13V)
    Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
    Frsky version Built-in SPI Frsky receiver with telemetry(D8/D16 switchable)
    Flysky version Built-in SPI Flysky receiver with telemetry(AFHDS/AFHDS2A switchable)
    DSM2/X Version built-in Serial-based DSM2/DSMX compatible satellite receiver
    No RX version need to add external Receiver
    Built-in Betaflight OSD(SPI Control)
    Built-in Current meter Max 28A
    Current meter scale set to 1175
    Built-in 5V 1A BEC with LC filter
    Built-in voltage detection
    EX1102 8500KV Motor


    Mode: EX1102 8500KV

    Configu-ration:9N12P

    Stator Diamter:11mm

    Stator Length:2mm

    Shaft Diameter:Φ1.5mm

    Motor Dimension(Dia.*Len):Φ13.5mm*16mm

    Weight(g):2.8g

    No.of Cells(Lipo):2S-3S

    Onboard 5A 4in1 ESC


    MCU upgraded to EFM8BB21

    Power supply: 2-3S LiPo/LiPo HV (7.4v/13v)

    Current: 5A continuous peak 6A (5 seconds)

    Support BLHeliSuite programmable

    Factory firmware: S_H_50_REV16_7.Hex

    Default protocol: DSHOT600

    Onboard Frsky Receiver Version


    SPI BUS receiver

    Frsky D8/D16 switchable

    Compatible both Non EU and EU-LBT transmitter Channels: 8ch or 16ch

    EU-LBT support(need to update betaflght v4.0 date 2019-04-11)

    Failsafe support

    No ground interference ( Transmitter and receiver 1 m from the ground): 300m

    Onboard Flysky receiver Version


    SPI BUS receiver

    Protocol: AFHDS and AFHDS-2A Switchable

    Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)

    No ground interference ( Transmitter and receiver 1 m from the ground): 300m

    Failsafe support

    Onboard DSM2/DSMX receiver version
    Serial bus receiver
    Protocol: DSM2/DSMX compatible
    Channels:6-9 (Depend on your radio)
    No ground interference ( Transmitter and receiver 1 m from the ground): 300m
    PNP Version ( Without Receiver)
    No RX version support external serial-bus receiver like xm+, crossfire, S-FHSS etc

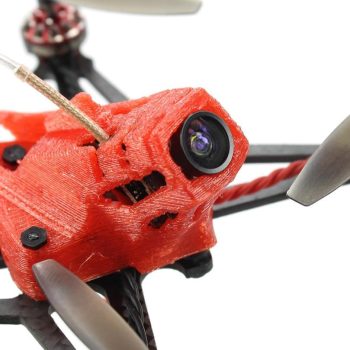

    40CH 25mW VTX AIO 700TVL Camera
    Output power: 25mw
    Frequency: 40CH
    Input voltage: 3.3V 5.5V
    Current consumption: 300mA(type)
    Camera resolution: 700TVL
    Field of view: 120°
    Video Format: NTSC
    Antenna: RG178 antenna
    Frequency: 5.8GHz 5bands 40 channels
    With Raceband
    Smartaudio ready(Frsky EU-LBT and DSMX version not compatible)
    Size: 13.9″12.0mm ( L*W )
    Weight: 3.2g
    Lipo Battery ( All Version have)
    Capacity:300mAh
    Voltage:11.4v
    Continuous Discharge Rate: 30C
    Instantaneous discharge rate: 60C
    Size: 65mmx18mmx11mm
    Weight: 25g
    Connector: XT30


    Features:

    – Crazybee F4 PRO V2.1 AIO Flight controller 2-3s Lipo Compatible

    – The lightest 1102 brushless motor only 2.7g with double ball bearings

    – Light ,Powerful and smoothly

    – AIO 5.8G 40CH 25mW VTX / 700tvl camera with smartaudio

    – 2mm carbon fiber frame with TPU 3d-printed canopy

    – Betaflight OSD support ,easy to get RSSI, Voltage ,current from your goggles(DSMX version no RSSI output)

    – Full telemetry function ready (Frsky and Flysky version support)

    – Compatible both for 2s-3s Lipo/LIHV

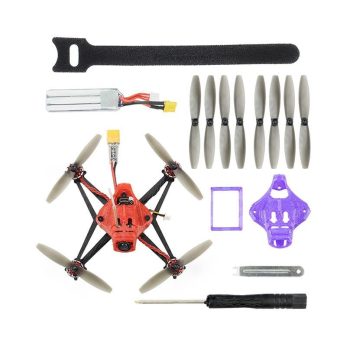

    Package Included:
    1x Sailfly-X FPV Racing Drone
    1x 3D Printed 30 Degree Angle Canopy ( Red)
    1x 3D Printed 40 Degree Angle Canopy ( Purple)
    1x 3S 11.4v 300mah 30C/60C battery
    1x Propeller disassemble tool
    1x Screwdriver
